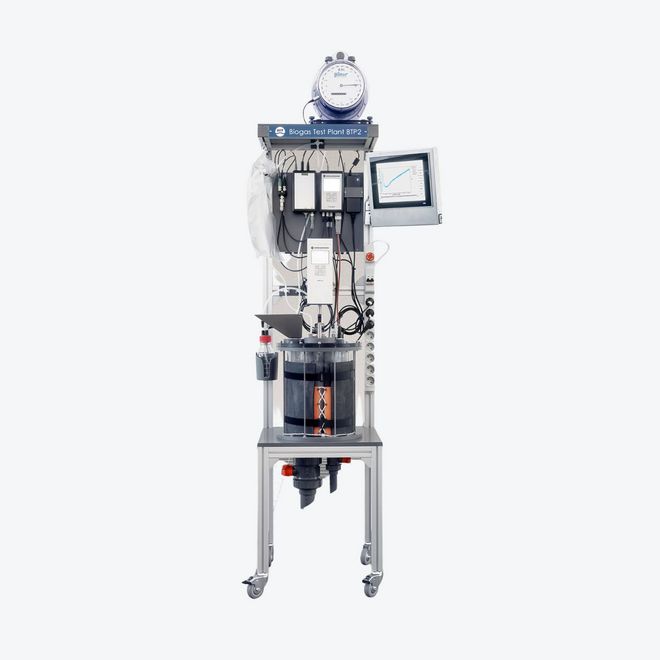

BTP2 - Biogas test plant with reactor volume 5 liters to 60 liters
The BTP2 biogas test plant is standard for substrate tests, gas yield tests and process optimization. This plant is already equipped with extensive on-line measurement technology (gas quantity; pH; temperature and optional redox potential). The reactors are designed as glass/plastic construction with silicone heating mats and available in the sizes 5-, 15-, 30- or 60-liters. The PM 210 agitator, specially developed for this application, is equipped with a stepper motor and allows the agitator to be used continuously, even at the lowest speeds.
The heating control system T-control allows to set the target temperature in the reactor automatically with high precision.
The SENSOcontrol data acquisition and control system allows the UIT pump modules to be connected and permits automatic pH control of the substrate.
For additional information and prices, please call +49 351 886 4600 or use our E-Mail: info@uit-gmbh.de.
More information
Product characteristic
- continuous monitoring of pH-values, temperature and Redox-Potential (Optional)
- Bioreactor approx. 15 liter; glass cylinder incl. heating - different volumes on request
- heating mat with controlling unit (T-Controller)
- Large discharge cock, feeding funnel
- automated feeding system (Optional)
- pumps for pH-value regulation (Optional)
- Stirrer
- Gas tight shaft bushing
- Gas meter to measure quantity of gas
- Gas bag to collect gas samples
- Data logger - SENSOcontrol
- Rack system
Areas of application
- Research
- Fermentation yield test
- Optimization of gas production
Advantages
- Gas quantity measurement, reference sample for the gas quality determination
- Data collection using data logger technology
- Customized equipping
- Compact, space-saving rack systems
Technical data
| Bioreactor with measuring technique and stirrer | |
|---|---|
| Gas meter / Gas bag | |
| SENSOcontrol | |
| Rack system | |
| Dimensions | Vol. approx. 15 liter; OD: 270 mm, wall thickness: 9 mm, height: 350 mm, different volumes on request |
| Material/ Features | Glass cylinder, large discharge and sampling valve on bottom of bioreactor, feeding funnel |
| Measuring technique | pH and temperature sensors, other parameters on request |
| Stirrer | 10 – 500 rpm, max. 600 Ncm |
| Shaft bushing | Gas tight with shaft chamber |
| Heating | Silicon-heater band incl. t-sensor, height of heater band: 200 mm; max. input power for heating: 500 W, adjustment through T-Controller |
| Measuring range | 1…60 l/h; resolution: 2,5 ml |
| Gas bags | Gas bag 1: Volume 5 liters with three-way-valve for storing a retained sample for gas quality determination |
| Gas bag 2: Volume 5 liters with two-way-valve for balance volume during the sampling process | |
| Storage and Display unit | pH-value, temperature and gas amount – incl. graphical and tabular display of actual values |
| Control function | Asynchronous timing of the agitator |
| Dimensions | 50x50x190 cm |
Illustrations and descriptions may vary. The plant / product is subject to change depending on technical updates.
